A failure on a packaged-salad line gave little warning: a faint streak behind the glass of a sealed panel PC that had held its ingress certification for two years. Condensation fogged the display after the nightly foam cycle, a corner of the touch surface began registering phantom touches, and the unit eventually tripped an earth-fault alarm mid-shift. The enclosure had never failed an incoming inspection. What changed was not the water volume but the chemistry arriving with it. An industrial panel pc ip65 certificate describes a fresh-water jet test, not years of chlorinated alkaline foam, and treating the two as equivalent is how sound hardware gets retired early. Procurement rarely sees that distinction in a failure report; it sees a warranty claim and an unplanned line stoppage instead.
Within the Fresh Water IP65 Jet Test
Hardware manufacturers, including KOXIAN, run the IEC 60529 jet with a 6.3 millimeter nozzle at about twelve and a half liters per minute for three minutes, using clean water near ambient temperature. An industrial panel pc ip65 unit mounts in a standardized cutout, and the certificate claims only that no harmful quantity entered during those three minutes. Nothing in the procedure asks the seal to survive repeated hot caustic foam, a peracetic acid rinse, or months of dried chlorine residue. The fixture also uses a new gasket at its designed compression, and the spray is applied once rather than repeated across hundreds of wash cycles. Engineers who read the certificate as a washdown guarantee are extrapolating well beyond the conditions the laboratory actually verified.
Why a Passing Seal Still Absorbs Sanitizer

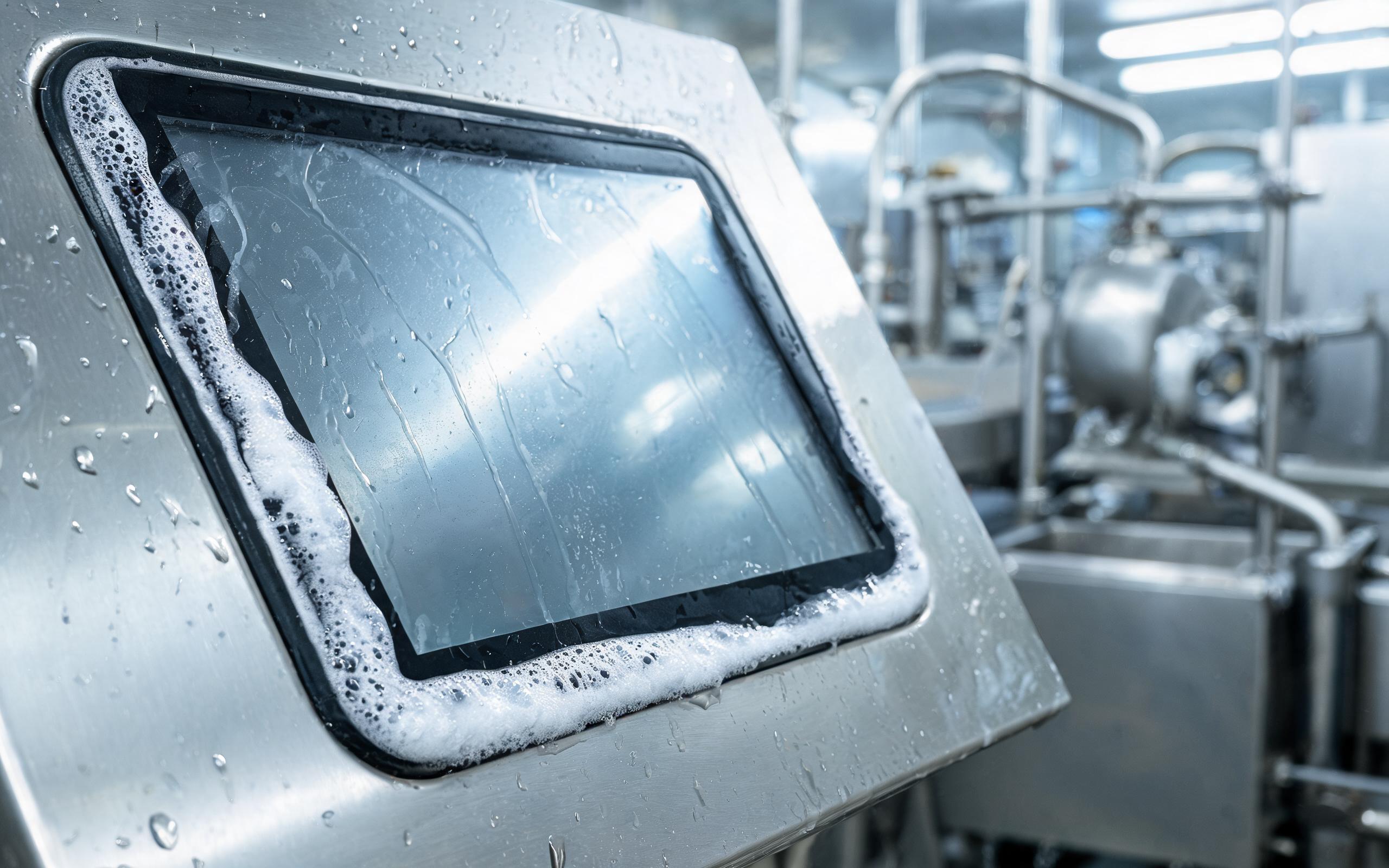

Elastomers are not inert barriers. They seal through compression, and many compounds absorb a small fraction of the fluids they contact, swelling slightly and shifting hardness. Silicone tolerates heat and steam but fares poorly against concentrated caustic and some acids; nitrile resists oils more readily than oxidizing sanitizers; EPDM generally handles steam and polar chemicals but can soften in lipid-heavy zones. On a washed packaging line, field notes from KOXIAN-supplied sealed units record bezel gaskets taking a permanent set once swelling cycles combine with thermal contraction after the rinse. Each cycle leaves the joint a little softer or flatter than the last while the gasket still looks intact.
Elastomer Families and Chemical Trade-offs
Material selection starts from the actual sanitation program rather than the label on the enclosure. Maintenance teams should share sanitizer names, concentrations, contact times, and rinse temperatures with whoever specifies an industrial panel pc ip65 enclosure, because a compound chosen against water alone can be the wrong answer on a chlorinated line. Compression set value at operating temperature matters as much as chemical resistance, since a flattened gasket leaks even when it never swells. Retained bezels that let technicians replace the seal on a fixed schedule outperform bonded gaskets in wet zones, and coated hardware limits corrosion around the joint. A one-page compatibility matrix prevents months of field experiments, since the rating only opens the conversation.
Scheduling Seal Checks Around Cleaning Cycles

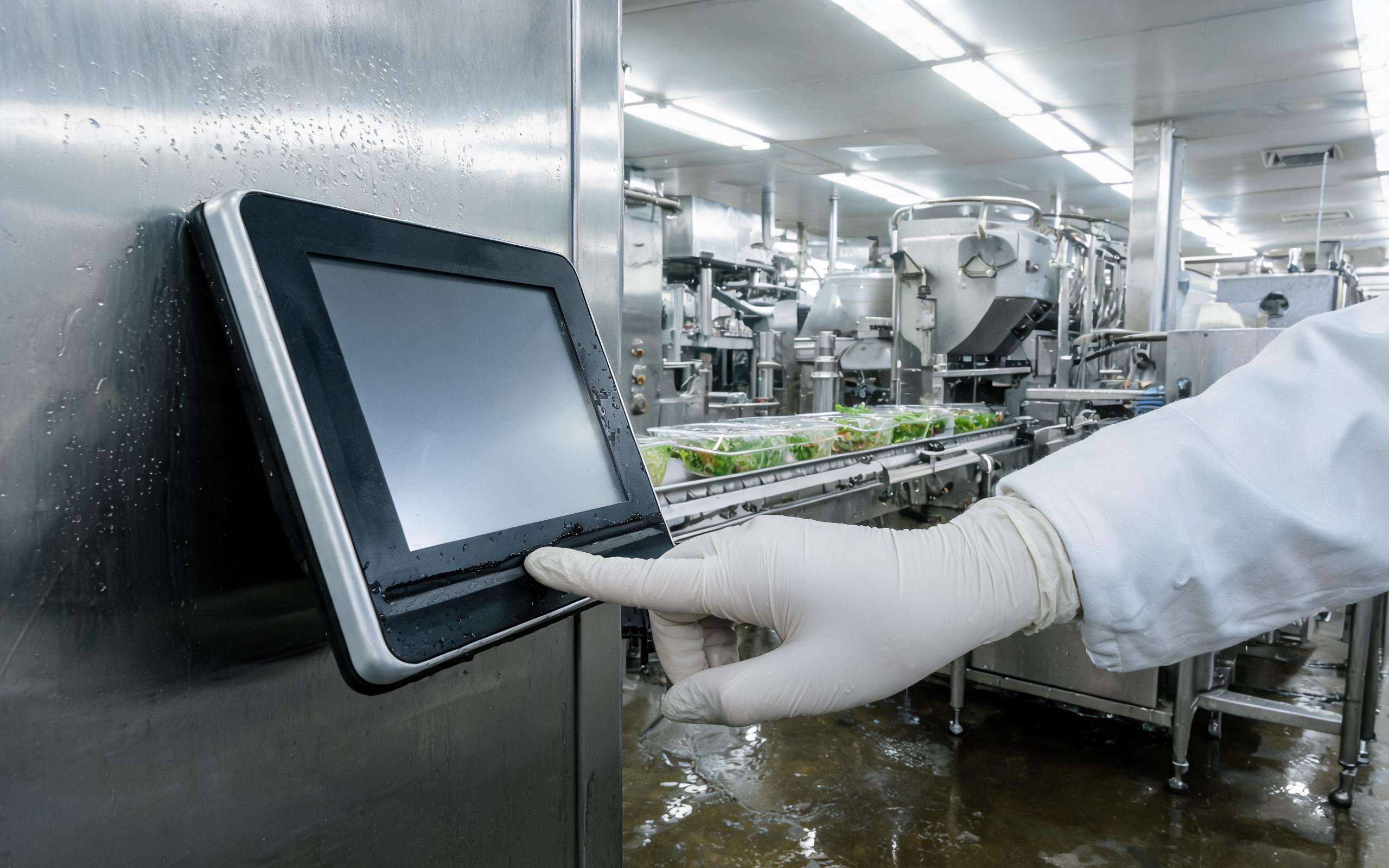

Inspection belongs to the cleaning calendar rather than the asset ledger. A practical program photographs the bezel on installation, then checks it after defined wash counts for swelling, tackiness, cracks, and salt deposits along the lowest edge where runoff pools. Torque on removable bezels follows the published sequence after any gasket replacement instead of a casual retighten, and a suspect seal becomes a work order before it becomes an ingress event. Verifying that mounting angles keep foam from resting against the joint removes a slow chemical bath at no cost. Logging the wash count next to the serial number and stocking a gasket kit from the same production batch keeps replacements matched to the designed compression.
IP65 remains a useful baseline for a panel PC that sees occasional spray in a dry area, and the certificate means exactly what its fresh-water test describes. Under daily chemical washdown, the deciding factors are elastomer compound, compression behavior, and a replacement schedule aligned to the cleaning program. Buyers comparing an industrial panel pc ip65 lineup should ask which gasket material matches their sanitizers, what compression set value applies at line temperature, and whether the seal is field replaceable. The hardware that lasts is the one whose sealing system was specified against the actual wash, not the test rig alone.
